The following are all projects designed by Jake Wilkinson as projects for students to build in RealRobots classes. Each project is built around a variety of engineering, coding and tech skills that students will learn as they build their own.

...

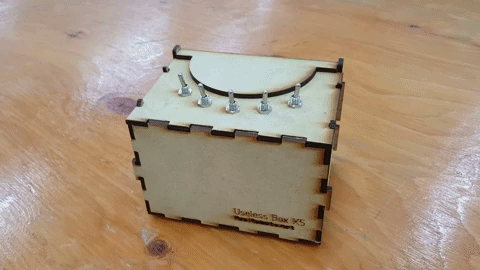

A 5-way useless box containing a custom PCB with auto power-down and battery management.

...

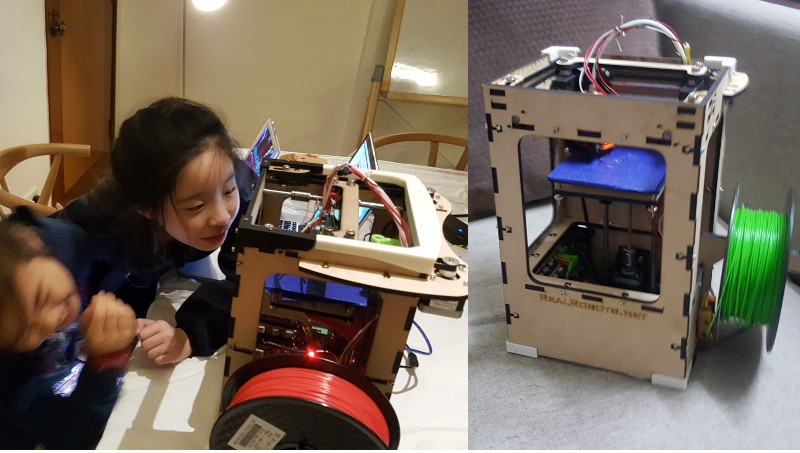

A 3D printer designed to be easy for students to build from scratch and very tolerant of rough treatment.

...
Robby Robby

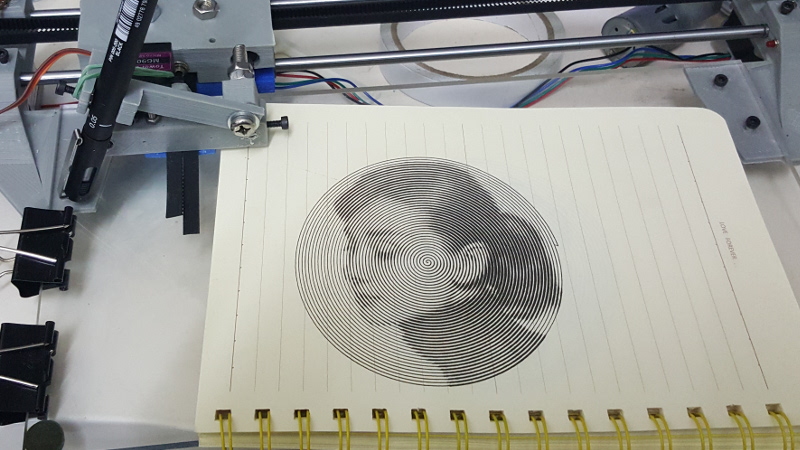

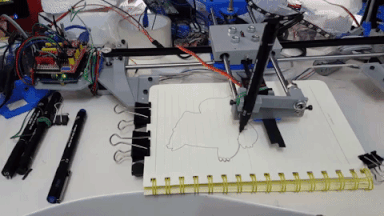

A quick 2D plotter, also software to convert raster images to vectors in some interesting ways.

...

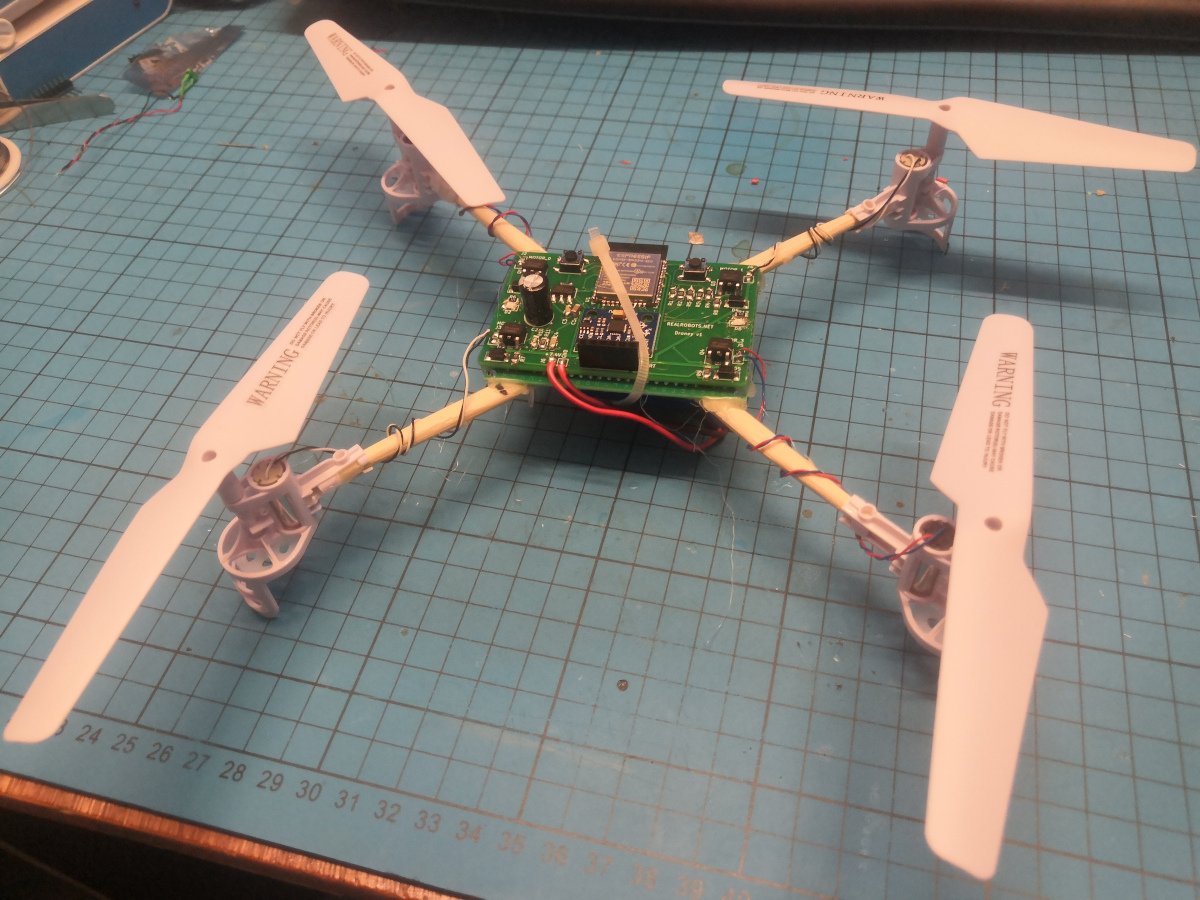

Custom flight controller PCB with ESP32 brains. Controlled by an ESPNow connected controller. Arms are bamboo chopsticks.

Firmware is completely custom.

...

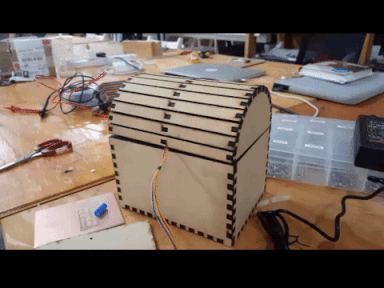

Auto-opening lockbox that responds to an RFID card.

...

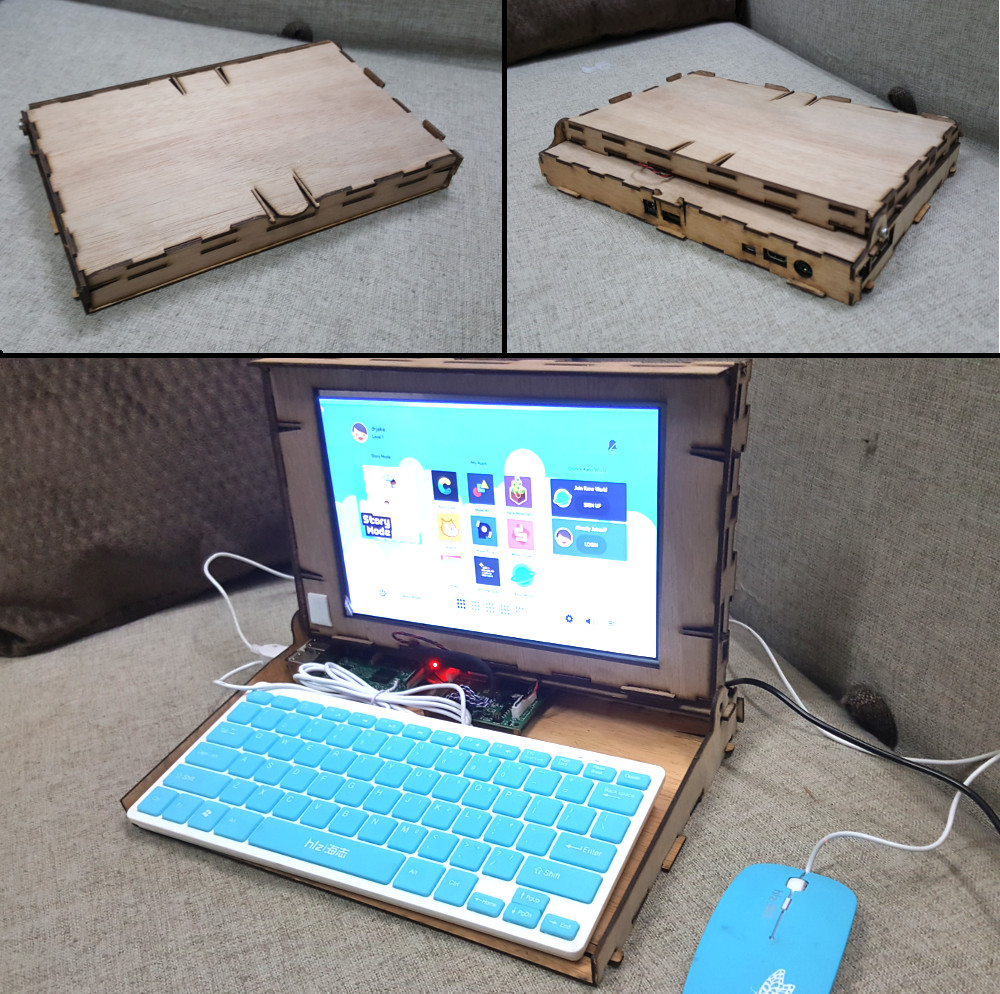

Raspberry Pi laptop build from laser cut plywood. Runs Kano, a linux distribution designed to teach children.

...

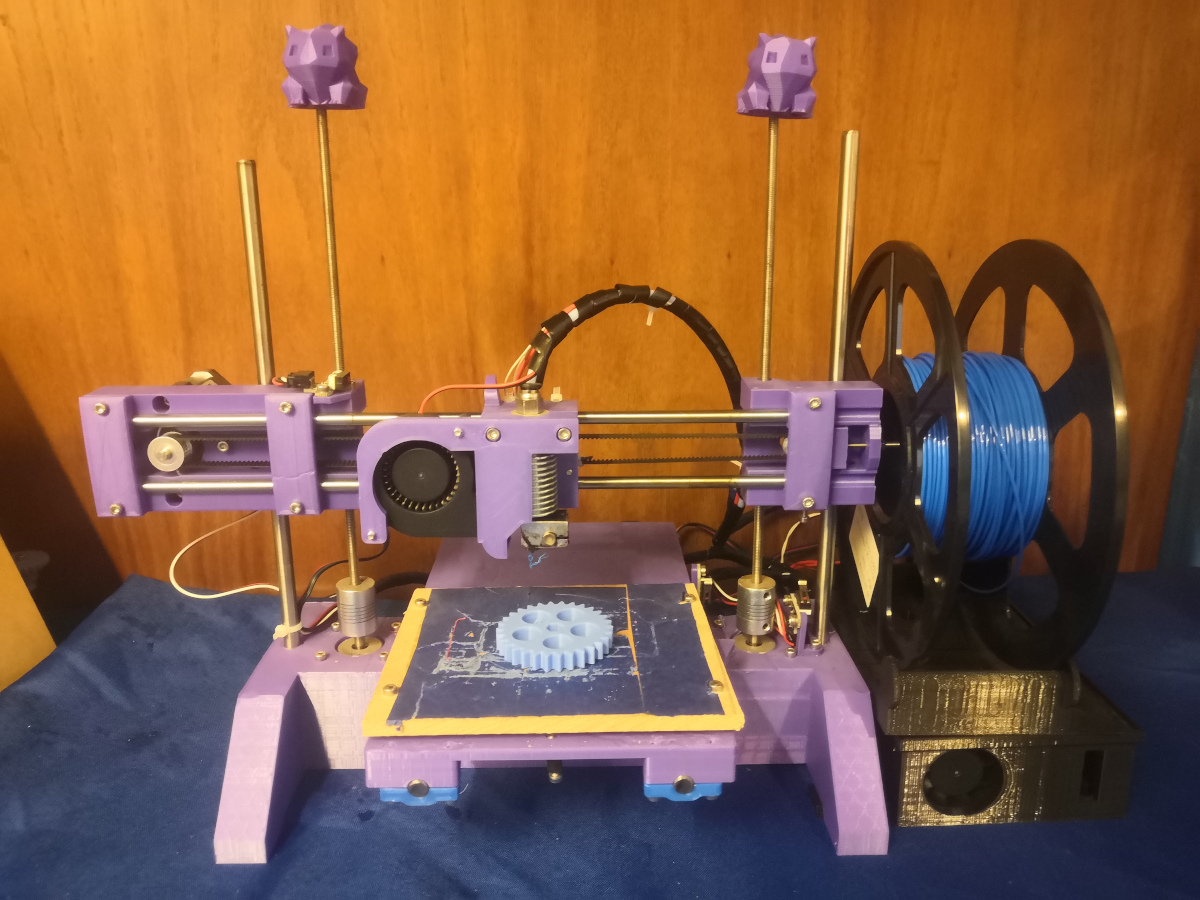

A second 3D printer, less robust than the wooden model but much easer to build and work on.

...

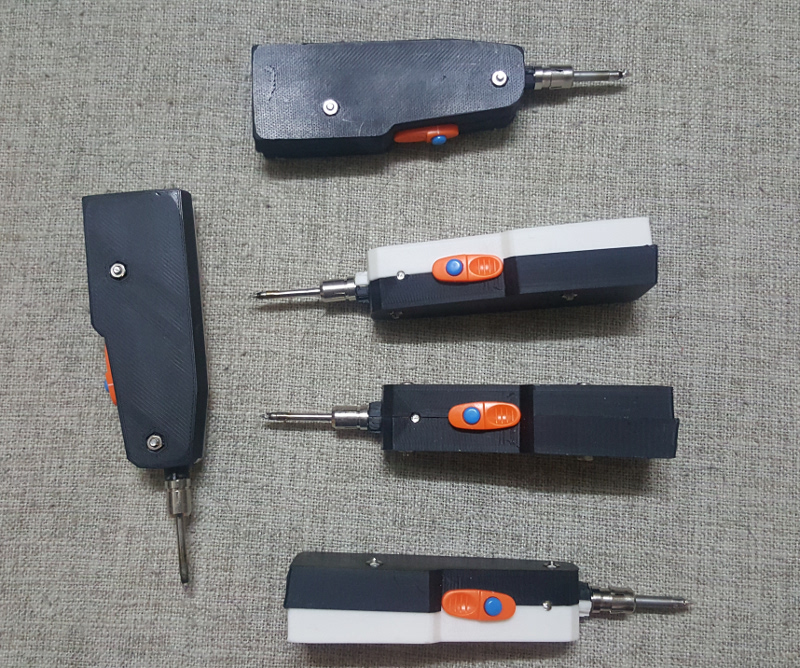

A battery powered, portable soldering iron with build in USB charging.

...

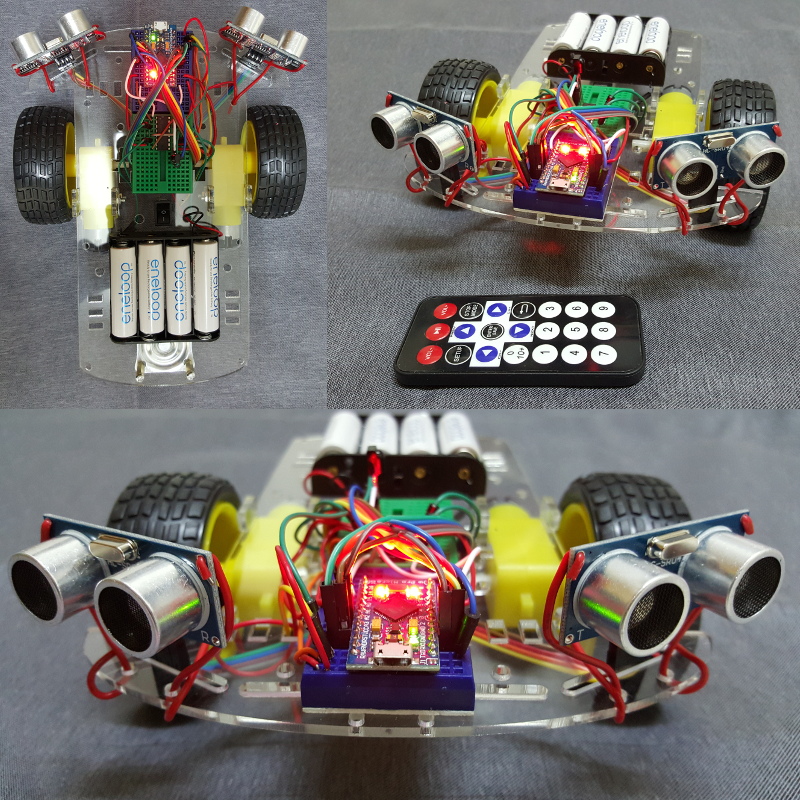

An autonomous Arduino robot with sonar object avoidance and IR remote control.

...

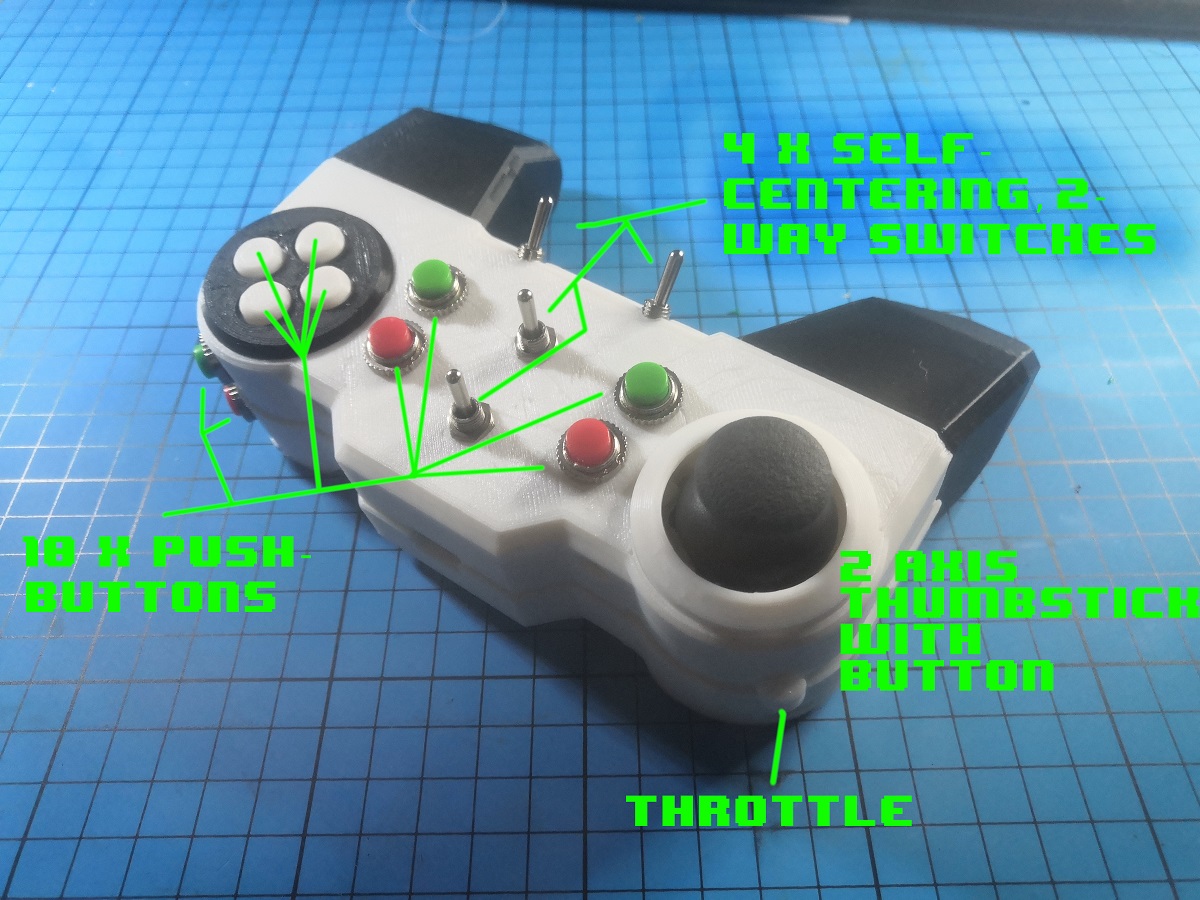

A series of extendable, DIY game controllers. Built to show off my rr_configurator firmware and GUI.

...

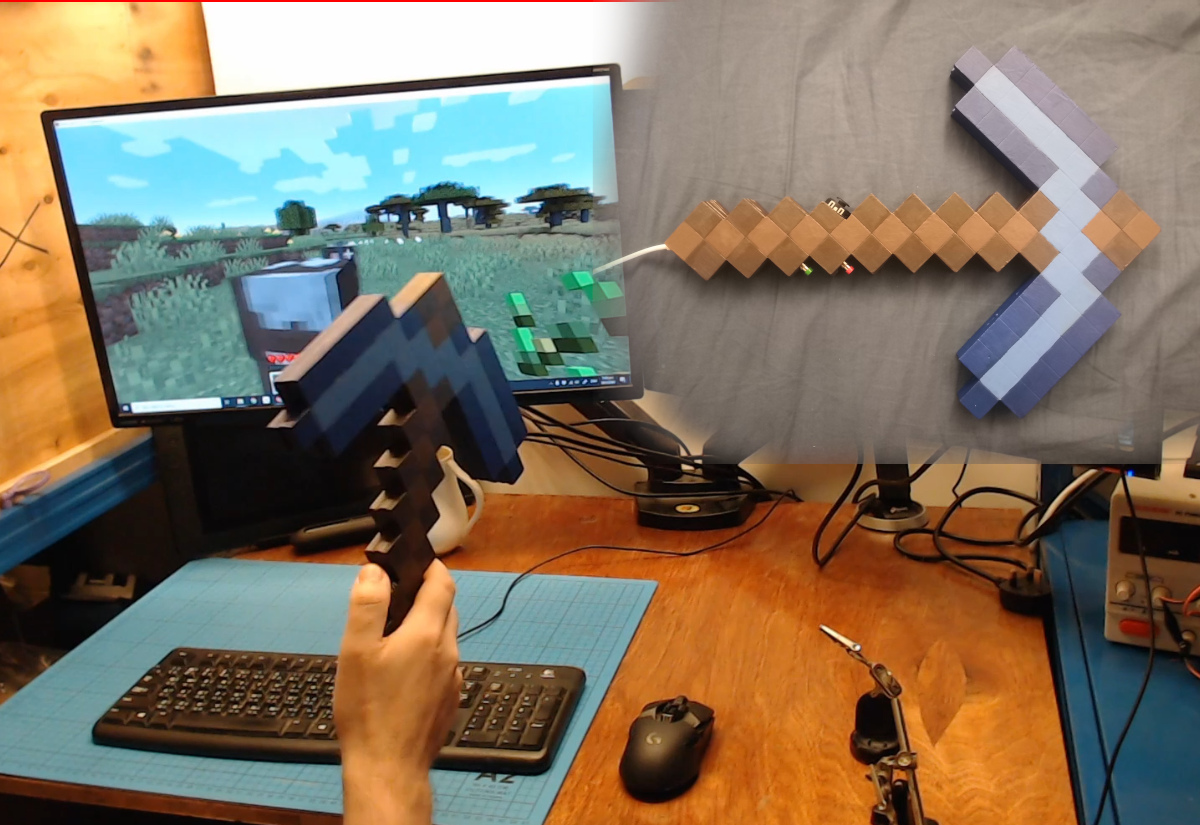

Another game controller, this one was a big hit with the students. It's 4 layers of cosplay foam with and Arduino Pro Micro, an accelerometer, some buttons and a thumbstick. Designed to play Minecraft, swinging it back and forth is translated as a left mouse click.

...

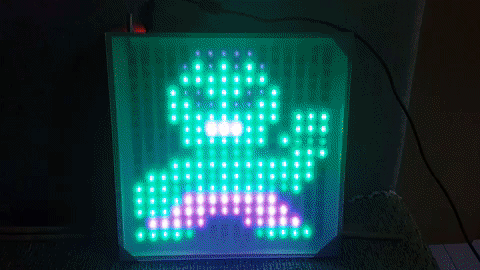

16 strips of 16 RGB leds, soldered together and programmed to display cute pixel art.

...

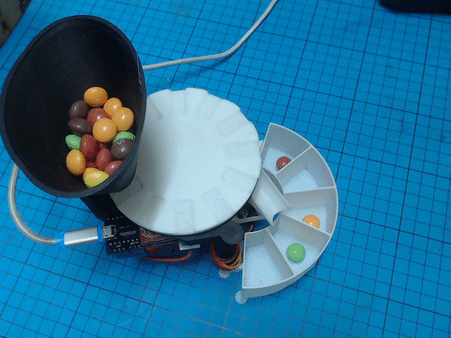

Candy sorting machine, designed to teach problem solving and coding to students.

Seems initially intimidating but each separate component is relatively basic and separate to code for.

Includes a custom PCB, standard NEMA17 step motor with a magnetic encoder added, RGB led and photoresistor, hobby servo for bin selection.
